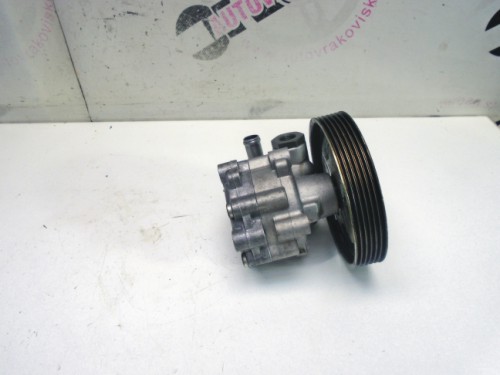

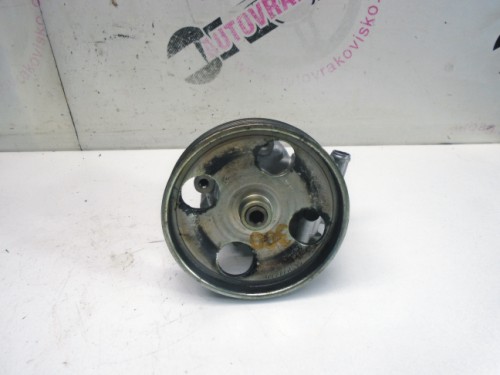

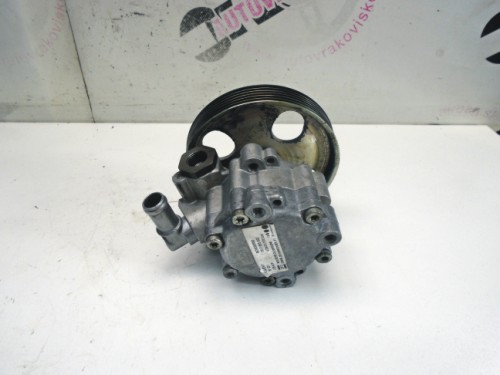

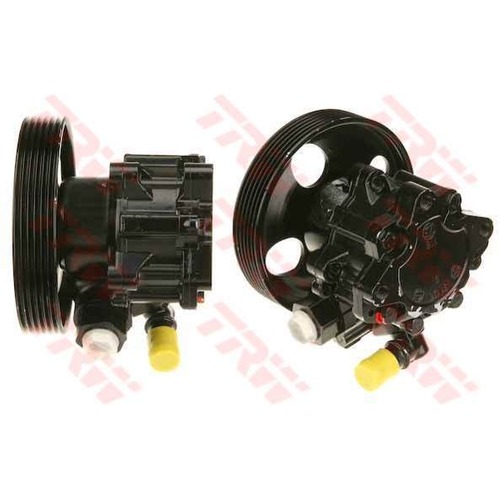

Servočerpadlo Peugeot 607 2.0 HDi 7617955502

Použitie v nasledovných typoch áut:

Citroen C5 (DC_)
Citroen C5 (RC_)
Citroen C5 Break (DE_)
Citroen C5 Break (RE_)
Citroen Evasion (22, U6)
Citroen Jumpy (U6U)
Citroen Jumpy Box (BS_, BT_, BY_, BZ_)
Citroen Jumpy Flatbed / Chassis (BU_, BV_, BW_, BX_)

Fiat Scudo Box (220L)
Fiat Scudo Combinato (220P)
Fiat Ulysse (220)

Lancia Zeta (220)

Peugeot 406 (8B)
Peugeot 406 Break (8E/F)
Peugeot 406 Coupe (8C)
Peugeot 607 (9D, 9U)
Peugeot 806 (221)
Peugeot Expert (224)
Peugeot Expert Box (222)
Peugeot Expert Flatbed / Chassis (223)

Napísané može byť v nasledovných kombináciach:

Citroen/Peugeot
9636086680, 96 360 866 80, 96-360-866-80
9640886480, 96 408 864 80, 96-408-864-80
40077A, 4007 7A, 4007-7A, 4007.7A
4007X9, 4007 X9, 4007-X9, 4007.X9

Fiat
9640830987, 96 408 309 87, 96-408-309-87
9640906480, 96 409 064 80, 96-409-064-80
9632876780, 96 328 767 80, 96-328-767-80
9633817680, 96 338 176 80, 96-338-176-80

ZF
7617955502, 7617 955 502, 7617-955-502
7617955508, 7617 955 508, 7617-955-508

TRW
JPR380

**************************************************
Operating Mode: Hydraulic
Driver Position: for left-/right-hand traffic
Manufacturer Restriction: DELPHI
Manufacturer Restriction: ZF
Manufacturer Restriction: SAGINAW
Pulleys: with v-ribbed belt pulley
Number of Ribs: 6
Belt Pulley Ø: 125 mm
Distance from belt pulley to pump: 26,7 mm
Suction pipe connector diameter: 16 mm
Pressure hose connector diameter: 16 mm
Mounting Bores Distance: 80 mm
Mounting points diameter: 8 mm
**************************************************
